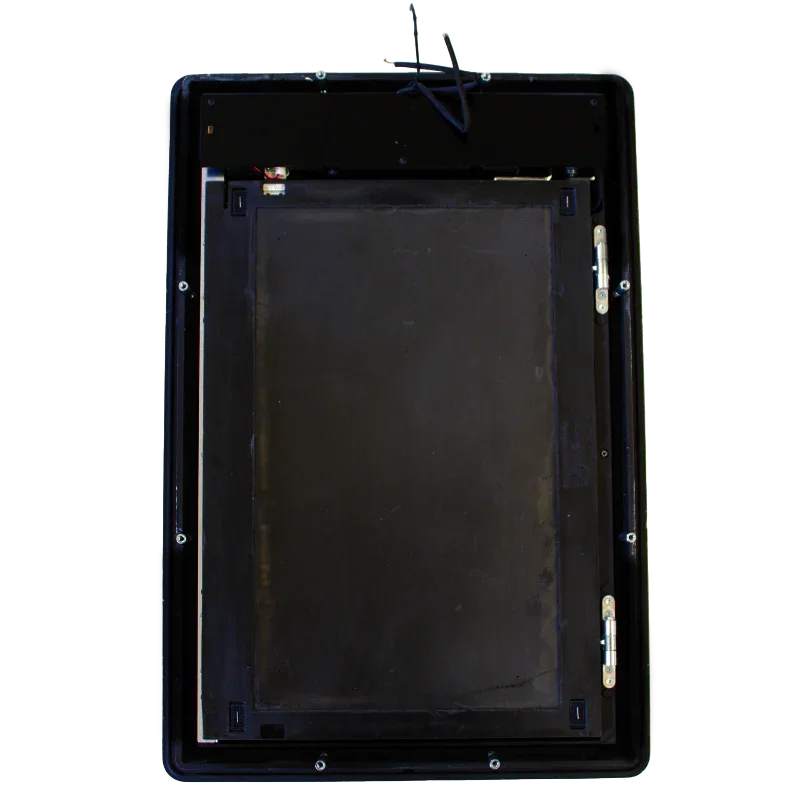

The outer frame consists of all components of the pet door, except the inner frame and petWALK.control. Without a functioning inner frame, the outer frame cannot be used.

Outer frame set - Large includes
1x 0101000402 Spare part - outer frame + door leaf complete
1x 9102010322 pWM - door leaf - large (assembly) - 03
1x 0106000412 Mechatronics lid - Large - Acrylic
1x 0111000020 Insulation Mechatronics - Set
1x 0111000030 Insulation Mechatronics - Insulation block middle for Large
1x 0201000020 Drive module - Set
2x 0201020000 Drive module - spacer
1x 0202000000 Slip clutch set
1x 0203010100 Door leaf fitting - guide plate
1x 0203020200 Door leaf fitting - wedge
2x 0203050000 Door leaf fitting - hinges for LARGE doors
2x 0203050020 Door leaf fitting - locking part
1x 0205000122 Locking fitting - Set - Large
1x 0205000520 Locking fitting - locking bush
1x 0206000620 Locking module - Set
2x 0208010000 Screws - Cylinder head screw M6 x 45 for drive motor
4x 0208020000 Screws - Cylinder head screw M6 x 20 for locking/drive module
4x 0208030100 Screws - Cylinder head screw M3 x 5 locking motor/cable harness engine console
4x 0208030200 Screws - Cylinder head screw M3 x 16 for control board
5x 0208050000 Screws - Countersunk screw M4 x 12 for hinges M + locking rail M & L
4x 0208051000 Screws - Countersunk screw 4 x 20 for the guide plate and fittings
3x 0208080101 washers
6x 0208080103 Screws - Countersunk screw with hexagon socket M4x20 for Large hinges
8x 0208100100 Screws - Threaded rod + extension nut M6 x 50mm
1x 0208100110 Threaded pins - worm screws 3x3
3x 0208110100 Screws - lens head screw M4 x 8 black for mechatronic cover
2x 0208130000 screws - countersunk screw 3.5 x 16 TX 15 for door wedge
1x 0301000721 control board
1x 0303000100 Gear Motor - 12V Nidec 0225/GMPG - 406.185
1x 0303020100 Motor - Locking motor
1x 0305000100 battery - 12V 0.8Ah lead gel battery - JST
1x 0308000000 Reed Magnet - Meder M4
1x 0309010000 Wiring harness - engine console
1x 0309020000 Wiring harness - door leaf motor
1x 0309050100 Wiring harness - connection - short
2x 0401030000 cable ties - 105 mm x 2.6 mm
205x 0405010000 Seals - Interior seal - Door leaf
185x 0405020000 Seals - External seal - Door leaf
250x 0405030000 Gaskets - Flange seal
17x 0406020300 Velcro fastener - RED - Duotec - 33 (pieces)
1x 0408020100 spacer bolt DA7-M4X18 SW7
2x 0408020200 spacer bolts DA7-M4X20 SW7
1x 0408040000 cable holder
1x 060103100 pw1 + pw2 small parts box
1x 0602010110 petWALK - User Guide (DE, V 4.10)
1x 0602020110 petWALK - Installation Manual (DE, V 4.20)
1x 0800115742 Software r1157_v42
